Basical Radar Sensor Test System Elements Requirement:

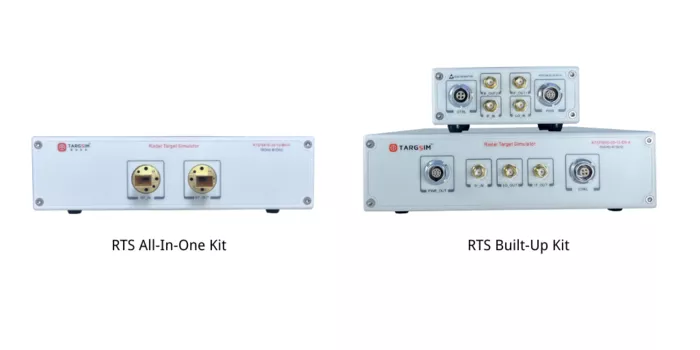

l 1 x Radar target simulator (contains accessories )
l 2 x Computer (RTS software control, radar system control)
l 1 x SMA wrench (For RTS cable connections)
l 1 x ruler (to measure the length)
l 1 x Alignment pen (optional use or not, align the radar and simulator antenna)

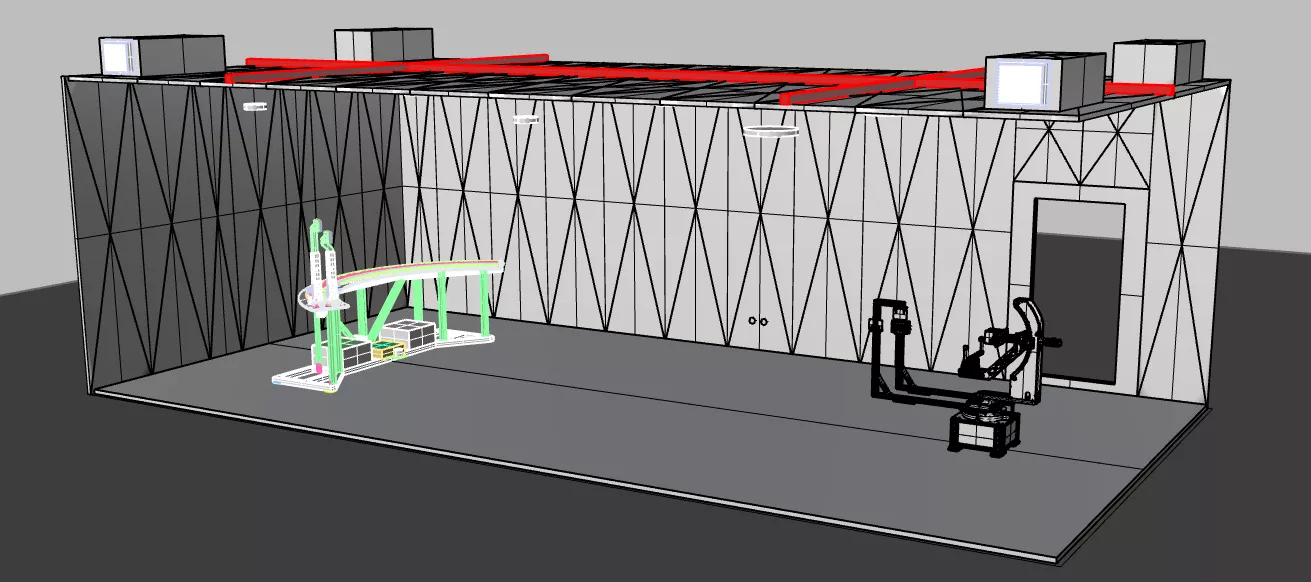

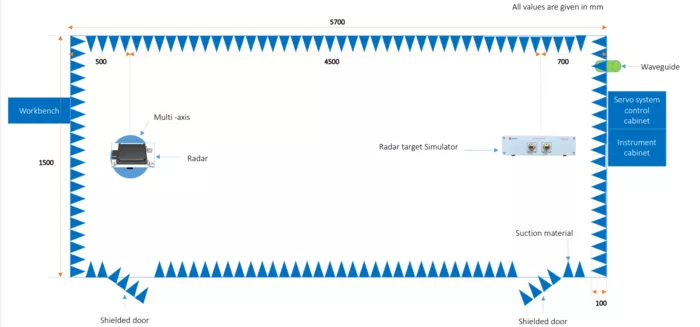

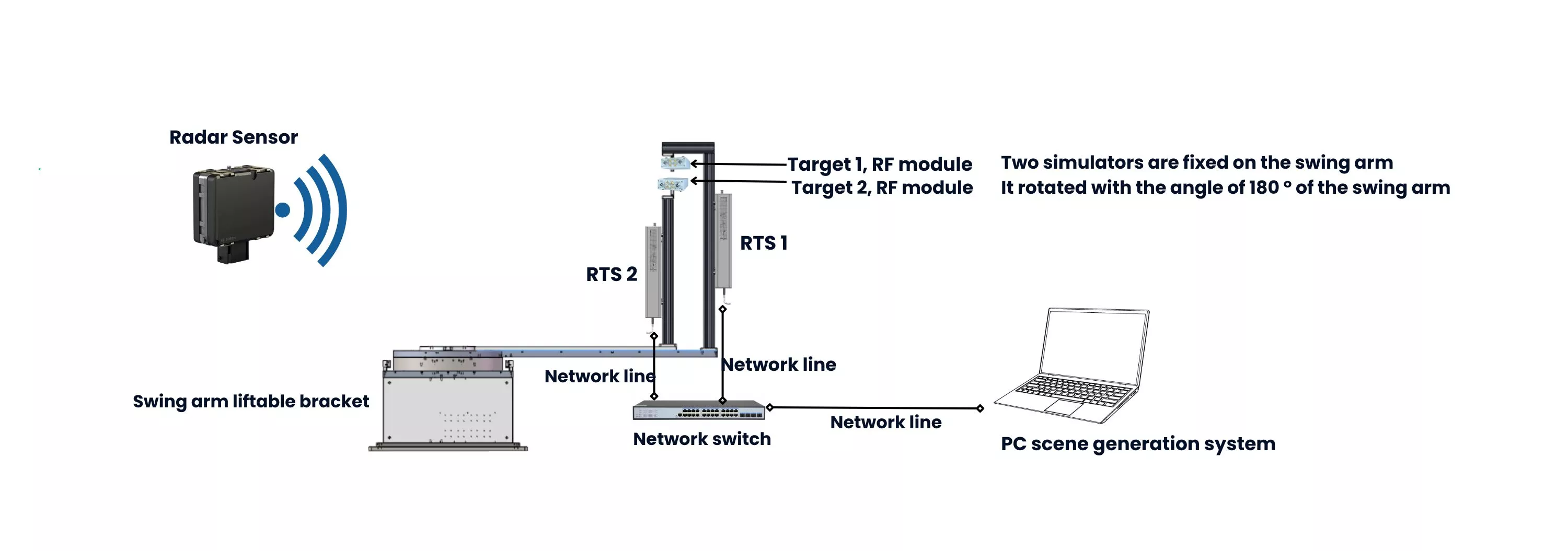

Multi-targets and Angle Test System
Elements Requirement:
l Radar target simulator (contains accessories )
l Computer (RTS software control, radar system control)
l SMA wrench (For RTS cable connections)
l Ruler (to measure the length)
l Alignment pen (optional use or not, align the radar and simulator antenna)
l 3D mechanical turntable
l Arc Slide Rail
l Radar data storage: Radar message offline storage
l False target test: False target identification and reporting
l Azimuth angle detection range: Azimuth angle range test
l Pitch angle detection range: Pitch angle range test
l Speed detection range: Speed range test
l Distance detection range: distance range test
l Accurate azimuth and angle detection: Angle precision test
l Pitch angle detection accuracy: Angle precision test
l Speed detection precision speed: Speed accuracy test
l Distance detection accuracy: Distance accuracy test
l Distance resolution: Distance resolution test
l speed resolution: Speed resolution test
l Azimuth and angle resolution: Azimuth angle resolution test
l Pitch angle resolution: Pitch angle resolution test
l Launch pattern test: Transmission pattern test (supports
l spectrum analyzer and network analyzer)
l Launch EIRP test: Launch EIRP test
l spurious test: Radar emission spurious test
l Frequency test: Radar transmit frequency test
l Signal bandwidth test: Radar signal bandwidth test
l Conformance testing: Test data consistency analysis
l Test configuration management: Test case configuration, saving and loading
l Test report generation: Test report generation and offline storag
Trail Transit & Intelligent Transportation
It is mainly used in vehicle detection, traffic survey, traffic incident detection, traffic induction, overspeed monitoring, electronic bayonet, electronic police and traffic light control.
We developed 24GHz high-speed rail and subway speed radar echo simulator can fault locate and guide maintenance of speed radar.
Automotive Industry Application
The senior driving assistance system (ADAS) uses a variety of sensors installed on the car to sense the surrounding environment at any time during the car driving process.
Collect data, identify, detect and track static and dynamic objects, and combine the navigator map data to perform systematic operations and analysis, so as to advance the driver in advance to detect the possible danger.
In various sensors, radar is undoubtedly key components, and radar testing will play an important role in car safety. To ensure that the high -end driving auxiliary system (ADAS) or the autonomous driving system is safe and reliable, simulation radar testing equipment is necessary. Our company launched a new M series automotive radar target simulator in 2023, with customized testing solutions to provide our customers with complete testing services from parts to automotive vehicles, from R & D, production to product testing to ensure automatic automatic protection Driving is safe and reliable.
Smart Life& Industry Field
It is mainly used in industrial liquid levels, excavators, heavy bulldozers, and safety construction workers near high -voltage wire tower, and monitoring of production safety monitoring.
The microwave radar module cooperates with the intelligent lighting system to achieve artificial intelligence response opening, active closure of human walking, and realize the application of intelligent human body sensing control.
TargSim radar target simulators are widely used in various fields, including autonomous driving, ADAS systems, radar performance verification, research and algorithm optimization, production quality control, and education and training. Whether developing new technologies or optimizing existing systems, our solutions provide comprehensive support.
